| Principle Dimensions |
| Length, Overall: |
44.87ft |
13.98m |
 |
| Length, Waterline: |
35.83ft |
10.92m |
| Beam, Maximum: |
12.50ft |
3.81m |
| Draft, Std Keel: |
8.00ft |
2.44m |
| Draft, Shoal Keel: |
5.75ft |
1.75m |
| Displacement: |
15,000lbs |
6,804kg |
| Ballast Weight: |
7,000lbs |
3,175kg |
| Sail Area, Upwind: |
1,120ft2 |
104.05m2 |
| Sail Area, Downwind: |
2,000ft2 |
185.81m2 |
| Bridge Clearance |
61.50ft |
18.75m |
 |

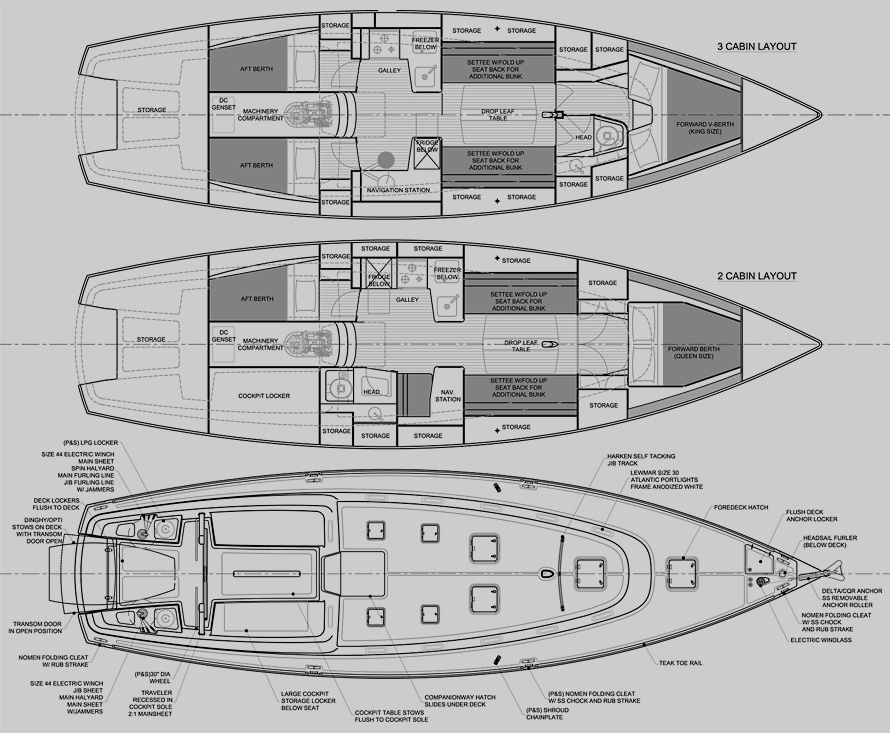

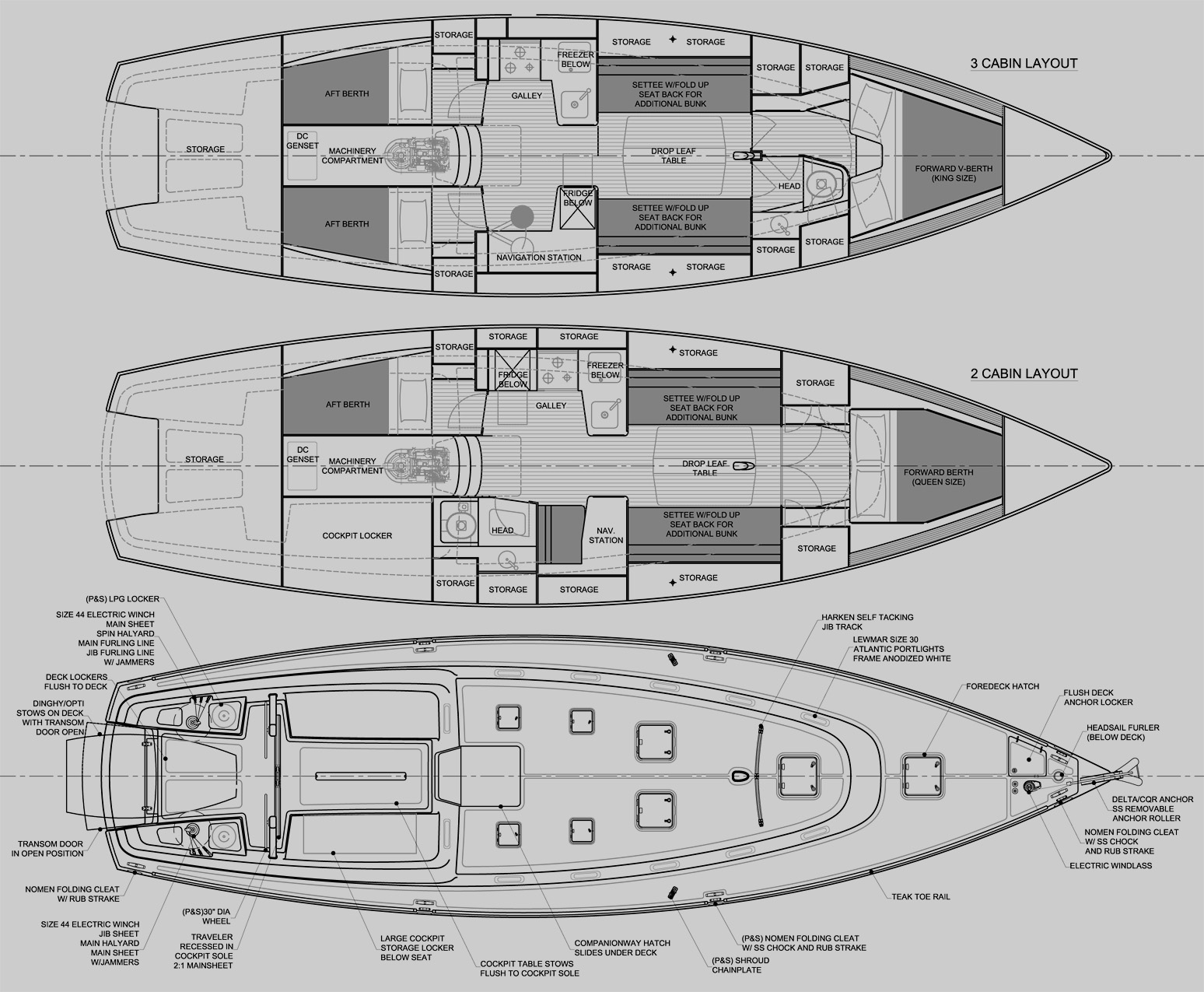

| Arrangement |
 |
|
