| Principle Dimensions |
| Length, Overall: |
27.50ft |
8.38m |
 |
| Length, Waterline: |
22.50ft |
6.86m |
| Beam, Maximum: |
8.00ft |
2.44m |
| Draft, Std Keel: |
4.50ft |
1.07m |
| Draft, Shoal Keel: |
3.50ft |
1.22m |
| Displacement: |
2,750lbs |
1,247kg |
| Ballast Weight: |
1,300lbs |
590kg |
| Sail Area, Upwind: |
370ft2 |
34.37m2 |
| Sail Area, Downwind: |
740ft2 |
68.75m2 |
| Bridge Clearance |
35.25ft |
10.75m |
 |

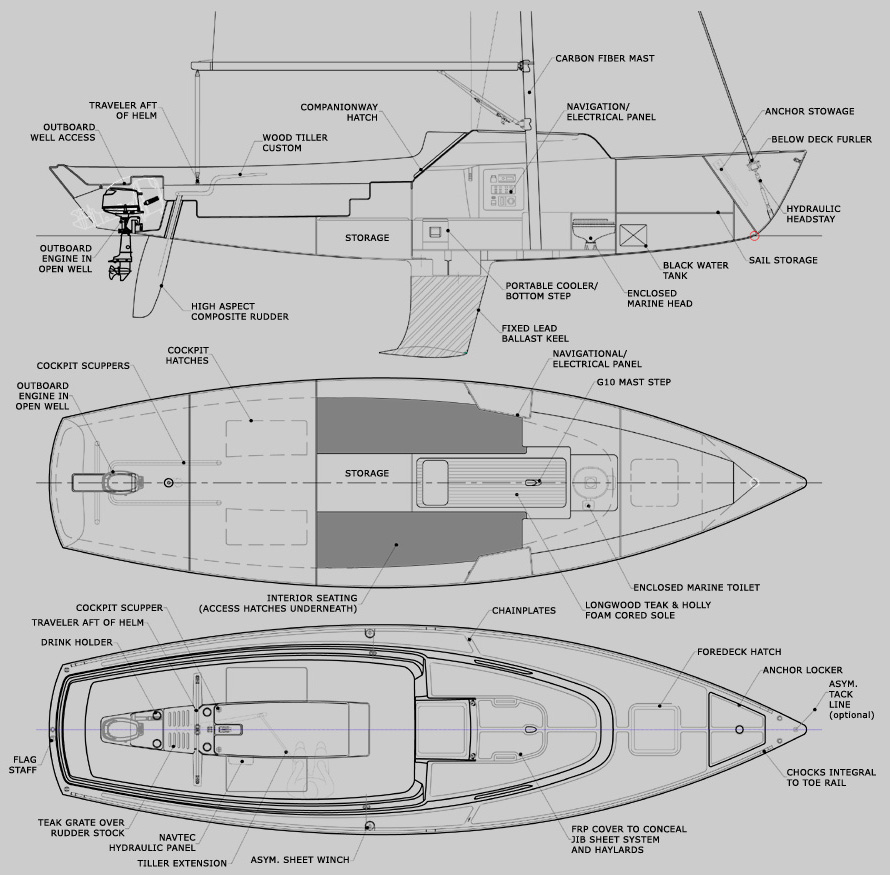

| Arrangement |
 |
|
